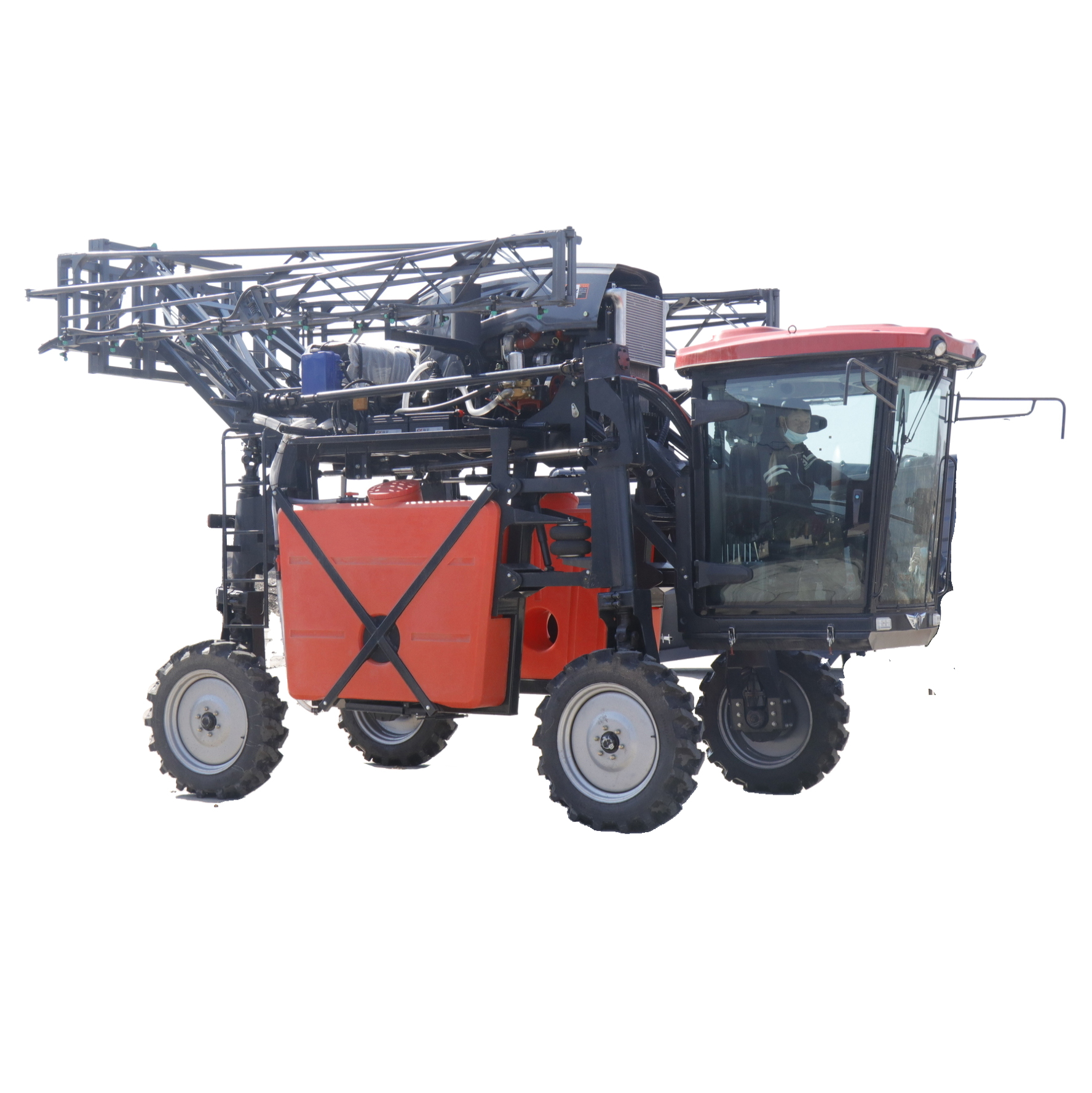

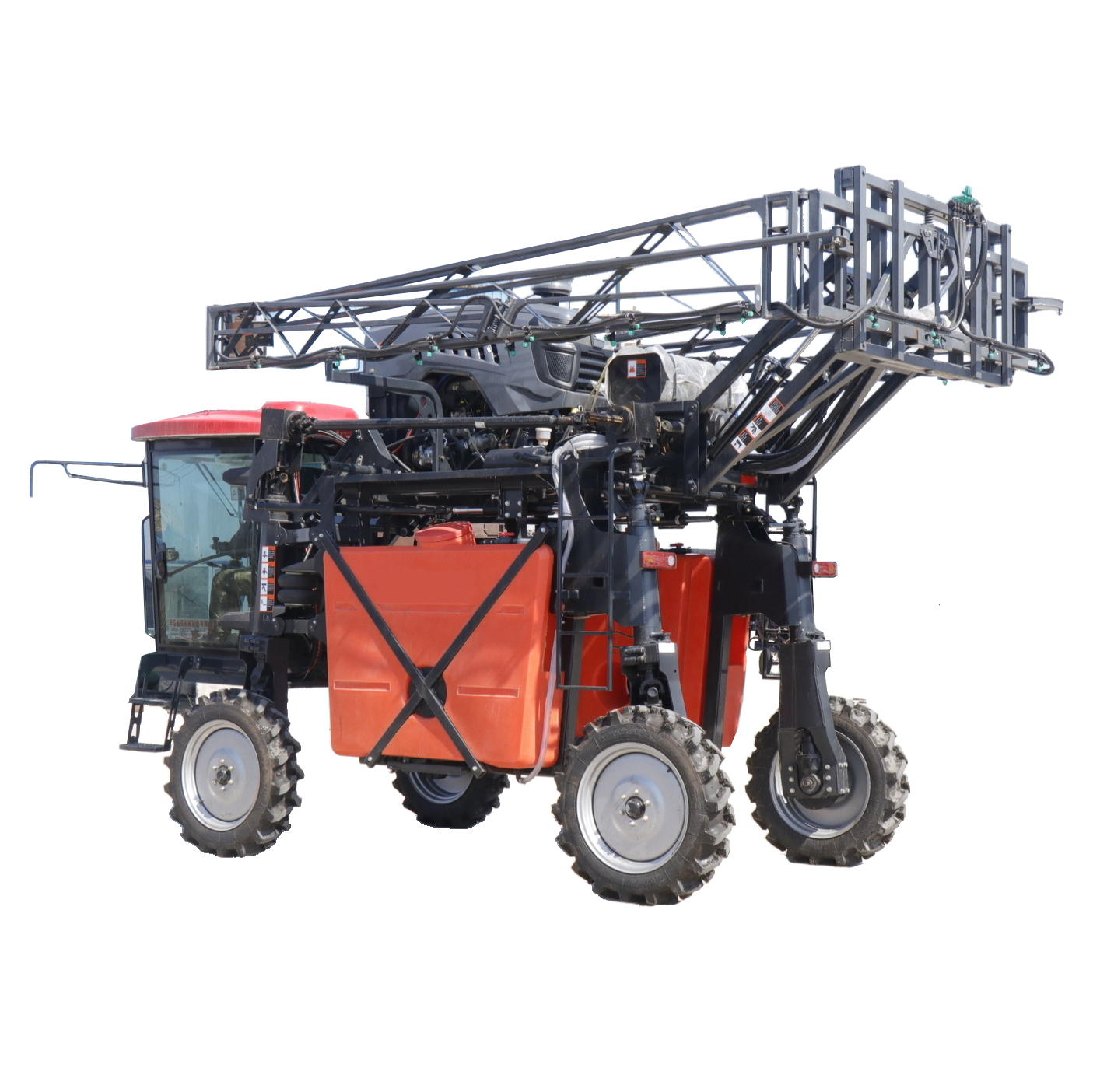

3WPYZ-1500-100hp
<
Min. order: 1 pieces
$20800
Packaging and delivery
Selling Units:
pieces
Single package size:
6000 x 3000 x 3600mm
Single gross weight:
4tons
Product attribute
Item No:
3WPYZ-1500
Engine Power:
100hp
Engine Brand:
Weichai/Yuchai Engine
Overall Size:
6000 x 3000 x 3600mm
Overall Weight:
4000kgs
Tyre:
9.5-38 8ply load 1400kg (width 240mm dia 1460mm)
Wheel Base:
3m
Wheel Track:
1950-2600（Automatic）
Motor:
4 Wheel Machanical
Steering Mode:
WS Four-Wheel Steering
Min Ground Clearance:
2100mm
Steering Radius:
inner 2.6m
Fuel Tank:
180L
Transmassion:
Mechanical Gear
Break:
Air Break
Tank Vol.:
1500L
Tank Material:
Polytene
Working Pressure:
0.3-0.9Mpa
Liquid Mixing Method:
High Pressure Jet Mixing
Pump Flow:
215L/Min
Boom Length:
18m
Boom Folding:
Hydraulic Automatic Folding, Automatic Balance
Boom Material:
Reinforced Steel. Q325
Boom Lifting Height:
600-3100mm
Nozzle:
Fan Nozzle
Nozzle Flow:
0.98-1.55L/Min
Nozzle Angle:
110 Degree
Nozzle Qty:
36pcs
Nozzle Distance:
50cm
Working Efficiency:
17ha/h
Intelligent Spraying Control:
ARAG/GeoLine
Clean Tank:
30L
Walking Speed:
0-30km/h
Drive mode:
American SAUER DANFOSS
Suspension System:
2 Airbag Suspension, Damping Spring
Air conditioner:
Yes Standard
Cabin Lifting Height:
900-2500mm
Corn Detasseling Machine:
Optional
Intertillage Fertilizer Applicator:
Optional
